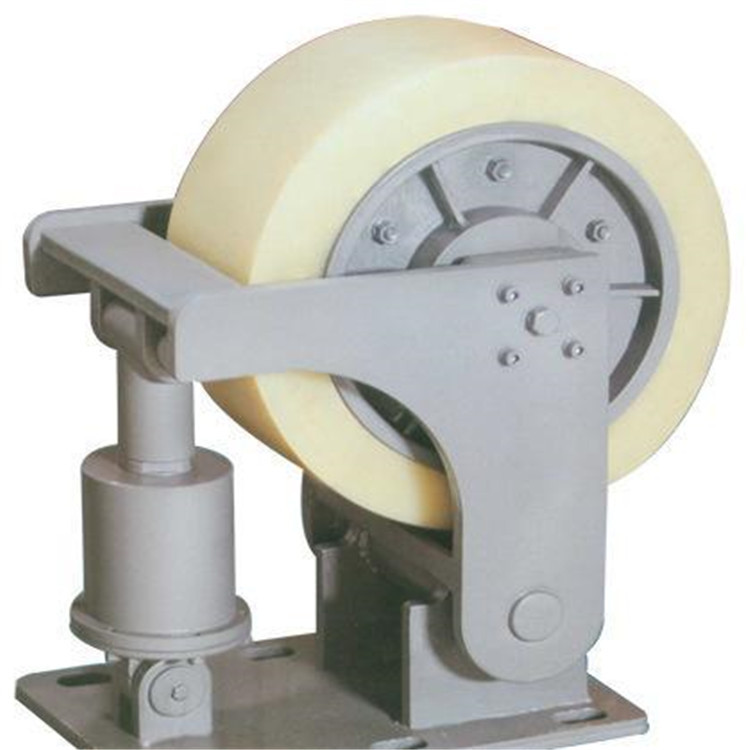

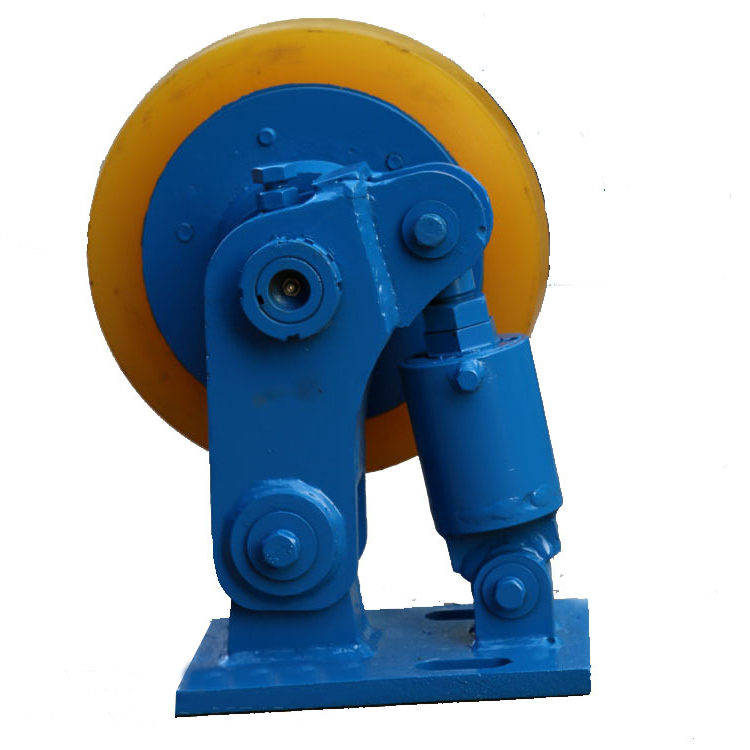

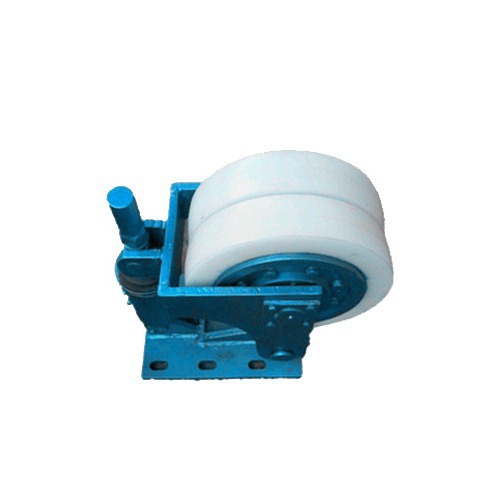

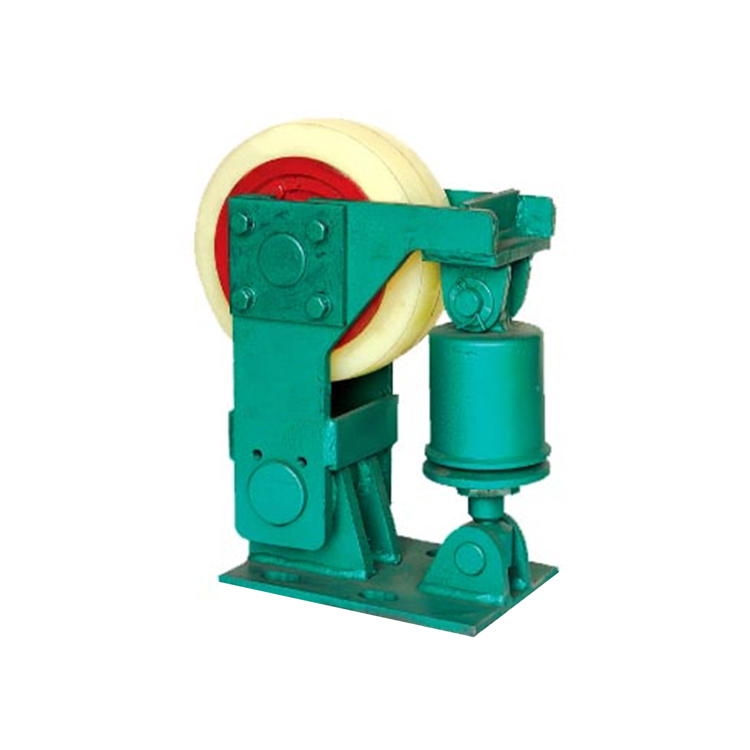

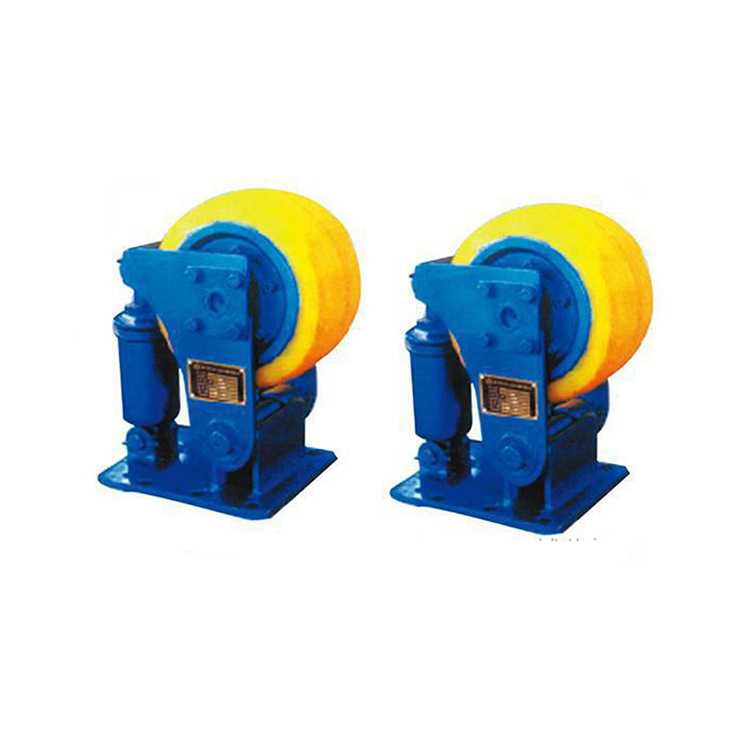

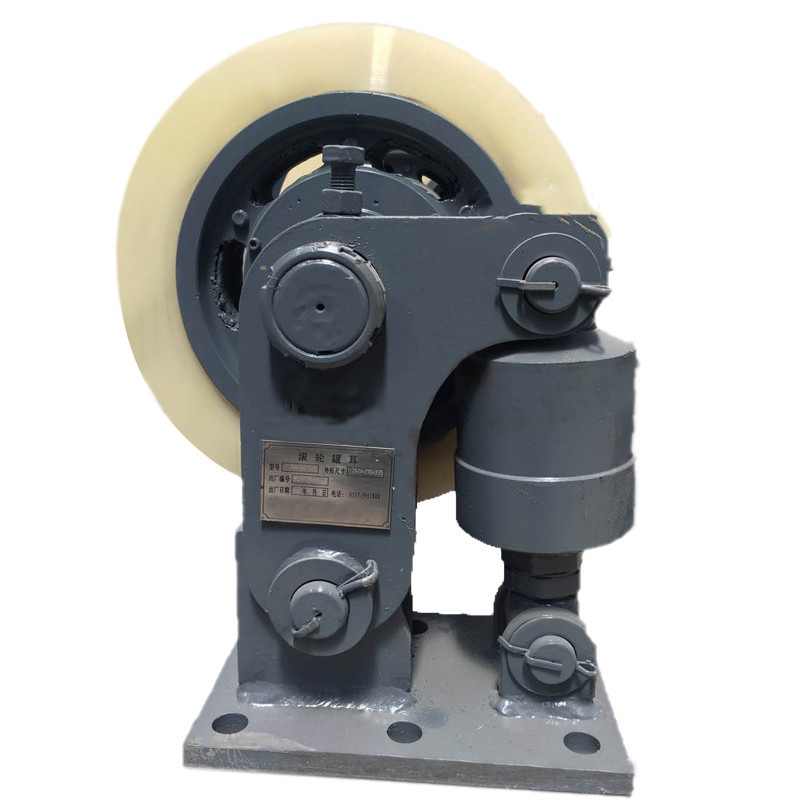

Our Roller Tank Ears are high-performance guiding and buffering components specifically designed for vertical mine hoisting systems, suitable for guiding and protecting mine cages, skips, and other hoisting equipment. Crafted from high-strength steel and wear-resistant materials with precision machining and heat treatment, they offer excellent load-bearing capacity, wear resistance, and shock absorption—making them the optimal choice for safe and stable operation in harsh underground mine environments.
Roller Tank Ears are core guiding components for vertical hoisting equipment in mines, primarily functioning to guide the cage or skip to move stably along the guide rail, reduce friction between the equipment and the guide rail, and absorb the impact force during operation. Compared to traditional sliding tank ears, our roller tank ears feature rolling friction, which greatly reduces wear and energy consumption. They are manufactured via precision machining, heat treatment, and strict assembly testing, ensuring stable structure, high precision, and strong load-bearing capacity. Fully compliant with ISO 9001 and mine safety standards, they meet the safety and performance requirements of underground mine hoisting systems.
Advantage: Reduces guide rail wear by 70% compared to traditional sliding tank ears, and extends the service life of both the tank ears and guide rails by 2–3 times.
Excellent Wear Resistance
The roller surface is treated with high-frequency quenching or hard chrome plating, with a hardness of HRC 55–60, which can withstand long-term friction and impact in harsh mine environments, reducing wear and replacement frequency.
Strong Load-Bearing Capacity
Made of high-strength alloy steel, the frame and shaft are经过 heat treatment to enhance toughness and strength, capable of bearing large radial and axial loads, suitable for heavy-duty hoisting equipment such as large cages and skips.
Stable Guiding & Shock Absorption
Equipped with high-quality sealed bearings and buffer rubber, it can effectively absorb the impact force during equipment operation, reduce vibration, ensure stable guiding of the cage/skip, and avoid deviation or jamming.
Low Friction & Energy Saving
Adopts rolling friction design, the friction coefficient is only 1/10 of sliding friction, which greatly reduces the resistance during hoisting, saves energy consumption, and reduces the load of the hoisting system.
Good Sealing Performance
Adopts double-seal structure, effectively preventing dust, coal slime, and sewage in the mine from entering the bearing, ensuring stable operation of the roller, and reducing maintenance frequency.
Easy Installation & Maintenance
Modular design, compact structure, easy to install and disassemble; the roller can be replaced independently without removing the entire tank ear, reducing maintenance time and labor intensity.
Customizable Options
Support custom processing of roller diameter, length, load-bearing capacity, and installation size (according to mine hoisting equipment drawings); optional anti-corrosion treatment (galvanizing, spray painting) for humid or corrosive mine environments; can be customized with different types of bearings and buffer structures according to actual needs.
Regularly check the wear condition of the roller surface; when the wear amount exceeds 3mm, replace the roller in time to avoid affecting guiding stability.
Check the tightness of bolts and the sealing condition of bearings regularly; add lubricating grease on time to ensure flexible rotation of the roller and prevent bearing jamming.
Do not exceed the rated load during operation; overloading will cause damage to the tank ear, shaft, and bearing, and even affect the safety of the hoisting system.
Avoid contact with sharp objects and strong corrosive substances; prevent the frame and roller from being scratched or corroded, which will reduce service life.
In underground environments with high humidity or corrosiveness, regularly inspect the anti-corrosion layer and re-spray or galvanize in time if there is peeling or rust.
